Curtain Wall and cladding: what are the clear differences between them?
Curtain walls and cladding are integral elements in contemporary architecture and play pivotal roles in both the design and functionality of buildings. These components, though seemingly similar, are essential for different reasons, influencing a building’s structural integrity, energy efficiency, and overall appearance.
In the construction industry, curtain walls are often implemented to shield the building from external weather conditions without bearing any load, whereas cladding contributes to the building’s structure and load-bearing capacity. Understanding the nuances between these two systems is vital for engineers and architects who aim to optimise building performance and aesthetics.
What is Curtain Walling?
Definition of Curtain Walling
Curtain walling is a sophisticated exterior facade system designed to shield a building from adverse weather while also permitting natural light to penetrate. Unlike load-bearing walls, this system is anchored to the building’s structural skeleton. Its lightweight and non-structural nature contribute to the contemporary aesthetics of modern buildings.
The frames, often made from aluminium or steel, are generally filled with glass or alternative materials like stone, metal panels, or ceramic tiles. This type of walling is frequently chosen in architecture for its sleek appearance and versatility.
A significant aspect of curtain walling is the integration of cladding. Cladding materials, which can be composed of metal, glass, or stone, cover the exterior frame. This combination forms a protective layer, enhancing the building’s insulation and safeguarding it against environmental elements. Cladding also contributes to reducing noise pollution and improving energy efficiency.
Construction of Curtain Walling
Curtain walling systems involve frames manufactured from aluminium or steel that are pre-assembled off-site. This prefabrication ensures that the system remains lightweight and optimally designed. Once transported to the construction site, the glass or selected material is installed into the frames.
Unitised curtain walls represent an advanced version of curtain walling. In these systems, large sections are pre-assembled, glazed, and sealed in a factory setting, allowing for quick on-site installation. This streamlined process results in enhanced quality control and reduced labour costs.
The construction of these facades focuses on achieving pressure-equalisation and efficient drainage to prevent water infiltration. Techniques such as employing weatherproof seals and strategically placing weep holes are fundamental in maintaining the facade’s integrity.
Key Points in the Construction Process
- Prefabrication: Frames are built and assembled off-site.
- Material Installation: Glass or other cladding materials are attached on-site.
- Weatherproofing: The system incorporates pressure-equalisation and drainage measures to manage water penetration.
Glass is predominantly used in curtain walling due to its transparency and ability to allow natural light to enter buildings. This feature is highly valued in commercial and residential high-rise constructions. The combination of glass with strong yet lightweight frames makes curtain walling an ideal choice for architects aiming for both functionality and modern design.
Exploring Curtain Wall Facades
Curtain wall facades have become a staple in contemporary architecture, offering a blend of aesthetic value and functional advantages. Unlike structural walls, curtain walls are non-structural cladding systems designed to shield the building from external elements while enhancing its visual appeal. These facades usually consist of a lightweight aluminium frame paired with glass panels or other decorative materials like metal or stone.
Types of Curtain Wall Systems
Curtain wall systems can be broadly categorised into two types:
- Unitised Curtain Walls: These are prefabricated panels assembled off-site and transported to the building for installation. This method provides speed and precision.
- Stick-Built Curtain Walls: These are assembled on-site from individual components, offering flexibility in design adjustments during the installation process.
Benefits of Curtain Wall Cladding
- Thermal Insulation: Enhances the energy efficiency of buildings by offering thermal insulation, reducing the need for additional heating or cooling.
- Aesthetic Flexibility: Available in various shapes, sizes, and colours, allowing architects to craft unique and visually appealing facades.
- Structural Flexibility: Given their non-structural nature, curtain walls can adapt to movements caused by wind, earthquakes, or other forces without compromising the building’s integrity.
- Light Transmission: Glass panels in curtain walls permit natural light to flood the interior spaces, improving the indoor environment and reducing the necessity for artificial lighting.
Drawbacks
However, these systems come with certain limitations, such as:
- High Costs: Installation and maintenance of curtain walls can be expensive.
- Sound Insulation: They may not offer the same level of sound insulation as other wall systems.
Key Components
A curtain wall facade often comprises several key elements:
- Aluminium Frame: Provides a lightweight yet sturdy support structure.
- Glass Panels: Allow natural light to enter, contributing to energy efficiency.
- Decorative Material: Metal or stone panels can be incorporated for additional aesthetic appeal.
- Structural Glazing: In some designs, structural glazing integrates the glass into the framework, offering a seamless exterior.
Curtain walls serve as both a protective shield against the weather and an architectural feature that enhances the building’s overall appearance. They are self-supporting and do not transfer weight to the building structure, making them a versatile and innovative solution in modern construction.
Benefits of Curtain Walling
1. Enhanced Visual Appeal
Curtain walling systems deliver a sleek and contemporary appearance, enhancing any building’s exterior. The clean, uninterrupted design can be tailored to meet specific architectural needs. Glass elements bring in natural light, creating an inviting and open ambiance.
2. Energy Efficient Design
Curtain walls are engineered for high energy efficiency. Utilising double or triple glazing provides robust insulation, maintaining warmth in winter and coolness in summer. This decreases reliance on heating and cooling systems, leading to energy savings and reduced costs.
3. Durable Weather Resistance
Curtain walling offers excellent protection against severe weather, including heavy rain, strong winds, and snow. Constructed from high-quality materials, these systems are built to endure and remain functional over time.
4. Minimal Maintenance Needs
Maintenance for curtain walling systems is minimal, saving time and money. These systems resist corrosion and fading, thanks to advanced manufacturing techniques and durable materials. This ensures longevity without frequent replacements or extensive upkeep.
5. Better Indoor Environment
Curtain walls improve indoor spaces by enhancing natural light and ventilation. Glass panels allow ample daylight, minimising the need for artificial lighting. Operable windows can increase ventilation, boosting air quality and diminishing the necessity for mechanical systems.
Curtain Wall Cladding Explained

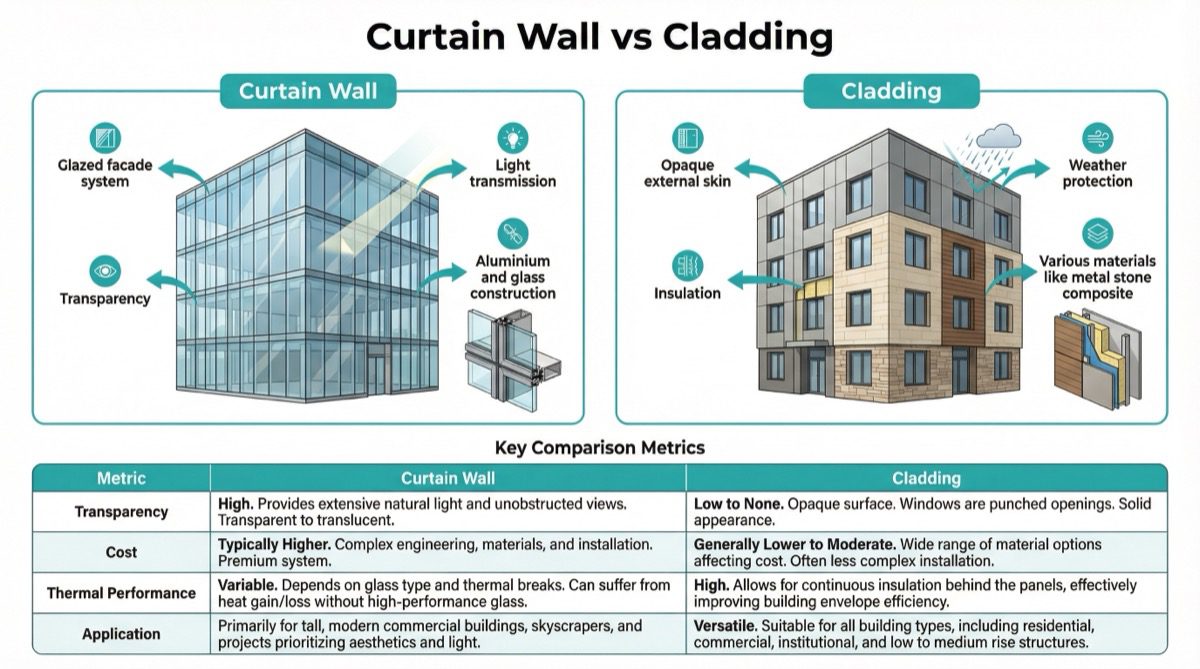

Curtain Walling Vs Cladding: Which is Better?
Curtain wall cladding is a sophisticated system created to shield the exterior of a building while also enhancing its visual appeal. This non-structural cladding method relies on a lightweight frame attached to the building’s main structure, which is then enveloped with panels made from an array of materials such as glass, metal, or stone. The system stands out for its easy installation and high degree of customizability, thanks to the wide selection of materials and finishes available.
Thermal and Acoustic Insulation: One major advantage of curtain wall cladding is its excellent thermal and acoustic insulation properties. The use of materials like double-glazed glass and insulated metal panels ensures that the building maintains a comfortable interior temperature all year round, which in turn lowers energy costs. The system also provides effective sound insulation, making it an ideal choice for buildings in noisy urban environments.
Uniform Aesthetics: An appealing feature of curtain wall cladding is its ability to create a seamless and uniform exterior appearance. Panels of identical size and shape are attached to the frame using various methods such as clips or adhesives. This results in a smooth, uninterrupted façade that significantly boosts the building’s visual appeal.
When comparing curtain walling to cladding, one fundamental aspect to consider is that curtain walling is entirely self-supporting and does not contribute to the building’s structural integrity. In contrast, cladding can either be structural or non-structural. Cladding systems employ materials like metal, concrete, wood, stone, brick, and terracotta to protect and decorate the building. These materials can be both drained and undrained, and they often help in improving the site’s aesthetic and protective features.
Durability and Protection: Curtain walling tends to offer greater durability and better protection against elements compared to traditional cladding. This is particularly beneficial for large-scale commercial buildings or multi-storey residential structures. Cladding, while effective, is usually preferred for smaller buildings where the load-bearing properties of structural cladding can be utilised more effectively.
Energy Efficiency: Curtain walls are designed to achieve high levels of energy efficiency. The materials used in curtain wall cladding, such as insulated glass or metal panels, provide substantial thermal insulation. This makes it a cost-effective option by keeping energy consumption low and maintaining a comfortable indoor environment.
Customization: Both cladding and curtain walling offer a degree of customization, but curtain wall systems are often easier to tailor to specific design requirements. With a variety of materials and finishes, architects can achieve the desired aesthetic effect without compromising on performance.
In essence, while both cladding and curtain walling serve the purpose of protecting a building’s exterior and enhancing its appearance, curtain walling provides additional benefits in terms of durability, thermal insulation, and ease of customization. The choice between the two depends largely on the building’s specific needs, location, and intended use. Builders and architects must evaluate these factors to determine the most suitable method for their projects.
Frequently Asked Questions
What is the purpose of curtain walling in construction?
Curtain walling serves as a non-structural covering for the exterior of a building. Its primary function is to safeguard the structure from harsh weather conditions like wind, rain, and snow. Additionally, it offers thermal and acoustic insulation, which helps in lowering energy expenses and minimising noise pollution. This makes it particularly beneficial for commercial buildings, offices, and hospitals.
What materials are commonly used for curtain wall cladding?
Multiple materials can be utilised for curtain wall cladding, including glass, aluminium, steel, and composite materials. Glass is predominantly chosen for its transparency and ability to let in natural light. Aluminium is favoured due to its durability, lightweight nature, and ease of installation. These characteristics make them ideal for both commercial applications and residential properties.
What are the advantages of unitized curtain wall systems?
Unitized curtain wall systems are pre-fabricated in a controlled environment before being assembled on-site. This significantly reduces installation time and labor costs. It also ensures higher quality control. Such systems are particularly suitable for high-rise buildings as they can be installed from inside the structure, negating the need for external scaffolding. This feature is especially appealing to architects and builders working on large commercial and office buildings.
How is curtain wall glazing installed?
Various methods are used to install curtain wall glazing, including structural silicone glazing, mechanical retention, and point fixing. Structural silicone glazing involves bonding the glass to the frame with a silicone adhesive. Mechanical retention secures the glass to the frame using mechanical fasteners. Point fixing employs small metal brackets to hold the glass in place. These methods ensure the glass is securely attached while providing a sleek, modern finish.
What are the typical dimensions of a curtain wall system?
The dimensions of curtain wall systems can differ based on architectural design and manufacturer specifications. Generally, these systems are modular, with most panels measuring between 1.2 to 1.5 metres in width and up to 3 metres in height. The dimensions can be adjusted to meet specific architectural requirements, making the systems versatile for various types of buildings, including commercial offices and residential properties.
What is the difference between a curtain wall and a wall facade?
The primary distinction lies in their structural roles. A curtain wall is a non-structural attachment to the building exterior, intended primarily for weather protection. In contrast, a wall facade is a structural part of the building, designed to bear the weight of the structure. Curtain walls typically use lighter materials like glass and aluminium, whereas wall facades are often constructed from heavier materials such as concrete or brick. This difference makes curtain walls more suited for tall, modern buildings while wall facades are commonly found in traditional architectural designs.
Curtain walls and cladding are two fundamental components in modern architecture and construction, each playing a unique role in building design and functionality.
While they may appear similar at first glance, especially to those outside the construction industry, they serve distinct purposes and have different implications for a building’s aesthetics, energy efficiency, and structural integrity.
In this blog, we will delve into the clear differences between curtain walls and cladding, exploring how each contributes to the overall design and performance of buildings. From their materials and construction methods to their impact on building dynamics, we will provide a comprehensive understanding of these two critical elements that set them apart.
What is Curtain Walling?
Curtain walling is a term used to describe a facade system that is designed to protect a building from the elements while allowing natural light to enter the building. It is a non-load-bearing system that is attached to the building’s structural frame.
Curtain walling is installed on the exterior of a building and is used to create a modern, sleek look. It is a non-structural, lightweight facade system that is installed on the exterior of a building. Curtain wallings are typically made of aluminium or steel frames that are filled with glass or other materials such as stone, metal panels, or ceramic tiles. Curtain walling is often used in modern architecture to create a sleek, uniform appearance on the exterior of a building.
A key component of curtain walling is the use of cladding. Cladding is a material that is used to cover the exterior of a building, and it can be made from a variety of materials including metal, glass, and stone. The cladding is mounted onto the curtain walling frame, creating a protective layer that helps to insulate the building and protect it from the elements.
Curtain walling is a popular choice for architects and builders because it offers many benefits. It can improve the energy efficiency of a building by providing additional insulation, and it can also help to reduce noise pollution. Additionally, curtain walling is often used to create dramatic and visually striking facades on buildings.
Curtain Walling Meaning
The term “curtain walling” comes from the fact that the system is designed to hang like a curtain from the building’s structural frame. It is a lightweight system that is designed to protect the building from the elements while allowing natural light to enter. Curtain walling is a popular choice for modern buildings as it is versatile and can be used to create a variety of different looks.
How is Curtain Walling Made?
Curtain walling is typically made of aluminium or steel frames that are filled with glass or other materials. The frames are designed to be lightweight and are usually prefabricated off-site. The glass or other materials are then installed on-site. Curtain walling systems are typically designed to be pressure-equalised and drained to prevent water penetration.
Exploring Curtain Wall Facades
Curtain wall facades are a popular type of wall cladding used in modern buildings. A curtain wall is a non-structural wall system that is designed to protect the building from weather elements and provide an aesthetic appearance. It is typically composed of a lightweight aluminium frame, glass panels, and other materials such as metal or stone panels.
Curtain walling can be classified into two types: unitised and stick-built. The unitised curtain wall consists of pre-fabricated panels that are assembled off-site and then transported to the building site for installation. Stick-built curtain walls, on the other hand, are assembled on-site using individual components.
Curtain walling cladding systems have several benefits, including:
- Thermal insulation: Curtain walls can help to improve the energy efficiency of a building by providing thermal insulation.
- Aesthetics: Curtain walls can be designed in a variety of shapes, sizes, and colours, allowing architects to create unique and visually appealing facades.
- Structural flexibility: Curtain walls are non-structural, which means they can be designed to accommodate building movements caused by wind, earthquakes, or other factors.
- Light transmission: Glass panels used in curtain walls allow natural light to enter the building, reducing the need for artificial lighting and improving the indoor environment.
However, curtain walling cladding systems also have some drawbacks. For example, they can be expensive to install and maintain, and they may not provide as much sound insulation as other types of wall systems.
Overall, curtain wall facades are a popular choice for modern buildings due to their aesthetic appeal and structural flexibility.
Benefits of Curtain Walling
Curtain walling is a popular choice for modern buildings due to its numerous benefits. Here are some of the advantages of using curtain walling:
1. Aesthetically Pleasing
Curtain walling systems offer a sleek and modern look that can enhance the appearance of any building. They provide a seamless, uninterrupted look to the exterior of the building, which can be customized to suit the design requirements of the structure. The use of glass in curtain walling provides a bright and open feel to the building, making it more welcoming and inviting.
2. Energy Efficient
Curtain walling systems can be designed to be highly energy efficient, which can help to reduce the overall energy consumption of the building. The use of double or triple glazing in curtain walling can help to insulate the building, keeping it warm in the winter and cool in the summer. This can help to reduce the need for heating and cooling systems, which can save energy and reduce costs.
3. Weather Resistance
Curtain walling systems are designed to be weather-resistant, which means they can withstand extreme weather conditions such as heavy rain, wind, and snow. The use of high-quality materials and advanced manufacturing techniques ensures that curtain walling systems are durable and long-lasting.
4. Low Maintenance
Curtain walling systems require minimal maintenance, which can save time and money in the long run. The use of high-quality materials and advanced manufacturing techniques ensures that curtain walling systems are resistant to corrosion, fading, and other forms of damage. This means that they require little maintenance and can last for many years without needing to be replaced.
5. Improved Indoor Environment
Curtain walling systems can help to improve the indoor environment of a building by providing natural light and ventilation. The use of glass in curtain walling allows natural light to enter the building, which can help to reduce the need for artificial lighting. The use of operable windows in curtain walling can also provide natural ventilation, which can help to improve air quality and reduce the need for mechanical ventilation systems.
In summary, curtain walling systems offer numerous benefits, including aesthetic appeal, energy efficiency, weather resistance, low maintenance, and improved indoor environment. These advantages make curtain walling a popular choice for modern buildings.
Curtain Wall Cladding Explained
Curtain wall cladding is a system of cladding used to cover the exterior of a building. It is a non-structural system that is designed to protect the building from the elements, while also providing an aesthetically pleasing appearance. The system consists of a lightweight frame that is attached to the building’s structure, which is then covered with panels made from a variety of materials such as glass, metal, or stone.
Curtain walling cladding is a type of cladding that is specifically designed for use with curtain wall systems. It is a lightweight system that is easy to install, and it provides a high level of insulation, making it an energy-efficient option for buildings. It is also highly customizable, with a wide range of materials and finishes available to choose from.
One of the main benefits of curtain wall cladding is its ability to provide a seamless, uniform appearance to the building’s exterior. This is achieved by using panels that are all the same size and shape, which are then attached to the frame using a variety of methods such as clips or adhesive.
Another benefit of curtain walling cladding is its ability to provide a high level of thermal insulation. This is achieved by using materials such as double-glazed glass or insulated metal panels, which help to keep the building’s interior at a comfortable temperature while also reducing energy costs.
Overall, curtain wall cladding is a versatile and highly customizable system that can be used to create a wide range of wall facades. It is an energy-efficient and cost-effective option for buildings of all types, and it provides a high level of protection from the elements while also enhancing the building’s aesthetic appeal.
Curtain Walling Vs Cladding: Which is Better?
In summary, curtain walling provides more advantages than cladding. It is more durable, provides greater protection against the elements, and is better in terms of thermal and acoustic insulation. It is also safer and does not affect the building’s structure. Cladding, on the other hand, is typically used on smaller buildings and can be either structural or non-structural. While it can improve a building’s appearance, it does not provide the same level of protection as curtain walling.
Overall, the choice between curtain walling and cladding will depend on the specific needs of the building and the desired aesthetic. Architects and builders will need to consider factors such as the building’s location, climate, and intended use when deciding which method to use.
Frequently Asked Questions
What is the purpose of curtain walling in construction?
Curtain walling is a non-structural cladding system that is used to cover the exterior of a building. The primary purpose of curtain walling is to protect the building from the elements, such as wind, rain, and snow. It also provides thermal insulation and acoustic insulation, which helps to reduce energy costs and noise pollution.
What materials are commonly used for curtain wall cladding?
Curtain wall cladding can be made from a variety of materials, including glass, aluminium, steel, and composite materials. Glass is the most commonly used material for curtain walling due to its transparency and ability to provide natural light. Aluminium is also a popular choice due to its durability, lightweight, and ease of installation.
What are the advantages of unitized curtain wall systems?
Unitized curtain wall systems are pre-fabricated off-site and installed on-site, which reduces installation time and labour costs. They also offer better quality control, as the panels are manufactured in a controlled environment. Unitized curtain wall systems are also better suited for high-rise buildings, as they can be installed from the inside of the building, eliminating the need for external scaffolding.
How is curtain wall glazing installed?
Curtain wall glazing is installed using a variety of methods, including structural silicone glazing, mechanical retention, and point fixing. Structural silicone glazing involves bonding the glass to the frame using a silicone adhesive. Mechanical retention involves securing the glass to the frame using mechanical fasteners. Point fixing involves using small metal brackets to hold the glass in place.
What are the typical dimensions of a curtain wall system?
The dimensions of a curtain wall system can vary depending on the building design and the manufacturer. However, most curtain wall systems are designed to be modular, with panels that are typically 1.2-1.5 metres wide and up to 3 metres tall. The height and width of the panels can be adjusted to fit the specific requirements of the building design.
What is the difference between a curtain wall and a wall facade?
A curtain wall is a non-structural cladding system that is attached to the exterior of a building, while a wall facade is a structural component of the building. Curtain walls are designed to protect the building from the elements, while wall facades are designed to support the weight of the building. Curtain walls are typically made from lightweight materials, while wall facades are made from heavier materials such as concrete or brick.
